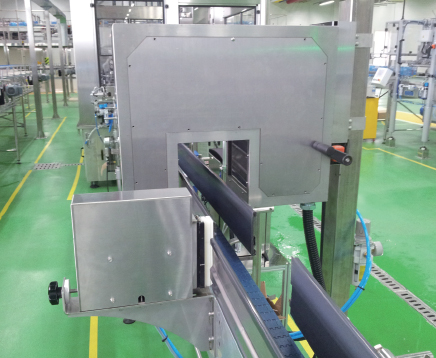

This is the Inspection Machine that inspects label
attachment state after labeling.

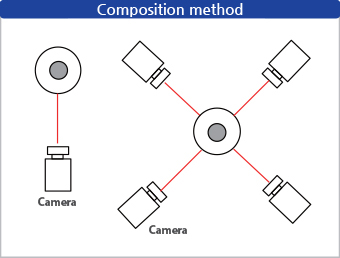

Composition of diverse method based camera is
enabled. (Cameras 1~4)
Product Feature
- Maximum speed : 1600 bpm
- Diverse lighting methods such as RGB LED
lighting, IR lighting and others
- Inspection image saving
- User friendly convenient operability and durability
- Remote control via Internet enabled
- Specialized Inspection machine designed for
the industrial environment
Types of Defect
Label existence ,Label slanting,
Label connection detection,
Different label detection
Inspection image
Specification
- Input Power : 220VAC, single phase, 50/60Hz
- Operating temperature : 0°C ~ 45°C
- Total weight : 90 kg
