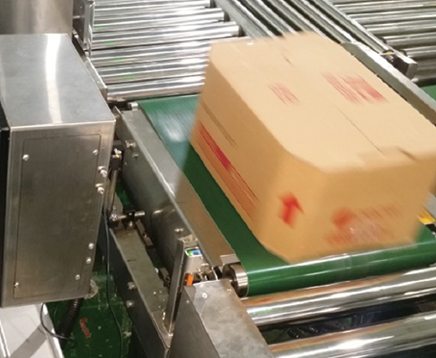

This is the Inspection Machine that inspects date
and text printed on all types of Carton Box after
packaging,and it inspects printing quality and
accuracy.
Product Feature
- Maximum speed : 400 bpm
- Inspection method : OCR ( Text Recognition )
Pattern-Matching ( Form Recognitin )
- Color Cap inspection enabled
- Inspection image saving
- User friendly convenient operability and
durability
- Remote control via Internet enabled
- Specialized Inspection machine designed for the
industrial environment
Types of Defect
No Printing, Blurred Character, Miss Printing
Letter cut-off, Size-Modified
Inspection image
Specification
- Input Power : 220VAC, single phase, 50/60Hz
- Operating temperature : 0°C ~ 45°C
- Total weight : 40 kg
