This is the Inspection Machine that inspects date
and text printed on all types of labels on the glass
bottle and PET bottle after filling, and it inspects
printing quality and accuracy.
Product Feature
- Maximum speed : 1600 bpm
- Inspection method : OCR ( Text Recognition ) Pattern-Matching ( Form Recognitin )
- Color Cap inspection enabled
- Inspection image saving
- User friendly convenient operability and durability
- Remote control via Internet enabled
- Specialized Inspection machine designed for
the industrial environment
Types of Defect
No Printing, Blurred Character, Miss Printing
Letter cut-off, Size-Modified

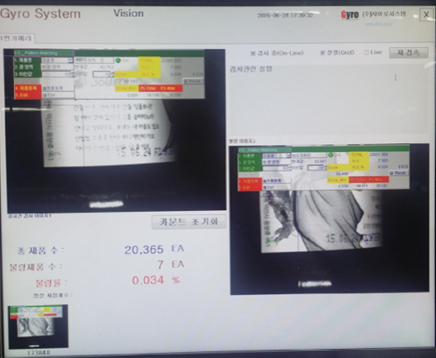

Inspection image
glass bottle
glass bottle
PET bottle
PET bottle
Specification
- Input Power : 220VAC, single phase, 50/60Hz
- Operating temperature : 0°C ~ 45°C
- Total weight : 40 kg
