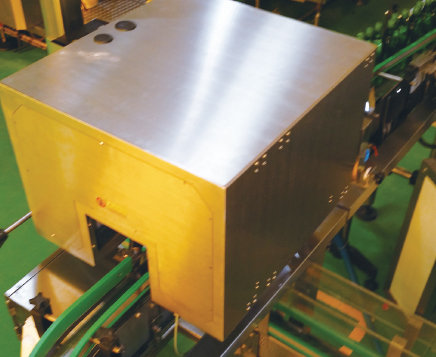

This is the Inspection Machine that inspects the
Crown cap’s Capping state after filling, and
composition of diverse method based camera
is enabled.(Cameras 1~4)
Product Feature
- Maximum speed : 1600 bpm
- Color Cap inspection enabled
- Inspection image saving
- User friendly convenient operability
and durability
- Remote control via Internet enabled
- Specialized Inspection machine designed for
the industrial environment
Types of Defect
Missing Cap, High Cap, Cocked Cap
Inspection image
Specification
- Input Power : 220VAC, single phase, 50/60Hz
- Operating temperature : 0°C ~ 45°C
- Total weight : 90 kg
