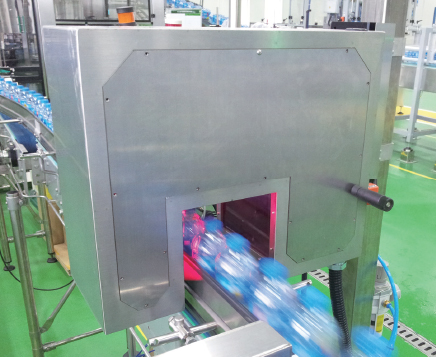

This is the Inspection Machine that inspects the
PET cap’s Capping state after filling,

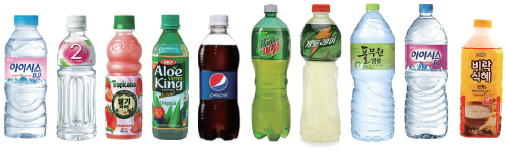

and it inspects 1 Piece Cap, 2 Piece Cap,

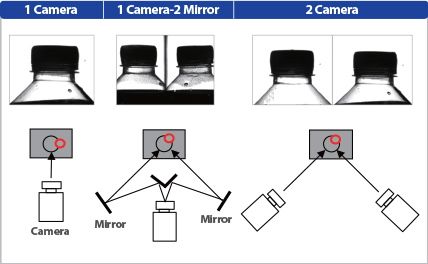

Color Cap and others. Various type of camera
combination is enabled. (Cameras 1~4)
Product Feature
- Maximum speed : 1600 bpm
- Color Cap inspection enabled
- Inspection image saving
- User friendly convenient operability
and durability
- Remote control via Internet enabled
- Specialized Inspection machine designed for
the industrial environment
Types of Defect
Missing Cap, High Cap, Cocked Cap
Broken Band (Bridge), Crack
Inspection image
Missing Cap
High Cap
Cocked Cap
Broken Band
Crack
Specification
- Input Power : 220VAC, single phase, 50/60Hz
- Operating temperature : 0°C ~ 45°C
- Total weight : 90 kg
